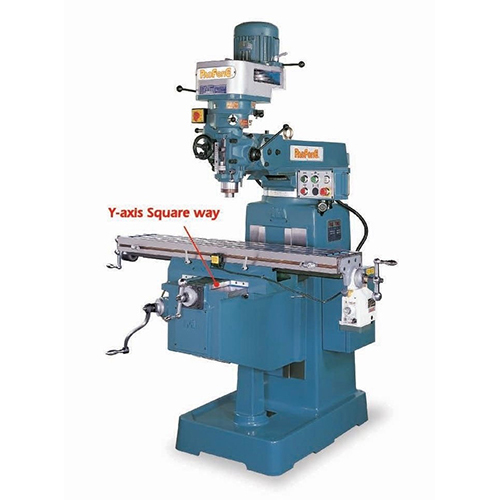

Send InquiryPF-4S Step Speed Head 3 HP Y Axis Square Way
MOQ : 1 Unit
PF-4S Step Speed Head 3 HP Y Axis Square Way Specification
- Control System
- Manual Levers
- Voltage
- 415 V
- Model No
- PF-4S
- Noise Level
- 75 dB
- Drive
- Belt Drive
- Motor Power
- 3 HP
- Frame Type
- Heavy Duty Casting
- Lubricating System
- Centralized Lubrication
- Power Rating
- 3 HP (2.2 kW)
- Frequency
- 50 Hz
- Operating Temperature
- 5C - 45C
- Accuracy
- High Precision
- Machine Type
- Vertical Mill
- Features
- Y Axis Square Way, Rigid Construction, Large Worktable
- Cooling System
- Coolant Pump Provided
- Production Capacity
- High
- Product Type
- Milling Machine
- Technology
- Step Speed Head
- Power Source
- Electric
- Operating Type
- Manual
- Power
- 3 HP
- Surface Treatment
- Painted
- Dimension (L*W*H)
- Approximately 1500 x 1700 x 2200 mm
- Weight (kg)
- Approx. 1100 kg
- Color
- Blue/Grey
- Usage & Applications
- Used for precision milling, drilling, boring, and cutting metals
- Quill Travel
- 127 mm
- Distance from Spindle to Table
- 406 mm
- Maximum End Milling Capacity
- 25 mm
- Distance from Spindle to Column
- 177 mm - 475 mm
- Spindle Taper
- R8 / ISO 30
- Hand Feed
- Available with Fine Adjustment
- Vertical Travel (Z Axis)
- 406 mm
- Number of Step Speeds
- 8 Steps
- Readout System
- Optional Digital Readout (DRO) Available
- Longitudinal Travel (X Axis)
- 900 mm
- Maximum Face Milling Capacity
- 80 mm
- Protection Devices
- Overload/Short-circuit Protection
- Cross Travel (Y Axis)
- 406 mm
- Coolant Tank Capacity
- 20 Liters
- Spindle Speed Range
- 80 - 2720 RPM
- Maximum Drilling Capacity
- 32 mm
- Table Size
- 1270 x 254 mm
- Table Load Capacity
- 350 kg
PF-4S Step Speed Head 3 HP Y Axis Square Way Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Week
- Delivery Time
- 7 Days
PF-4S Step Speed Head 3 HP Y Axis Square Way About
Experience savings and crowning performance with the PF-4S Step Speed Head 3 HP Y Axis Square Way vertical milling machine-your gilt-edged solution for precision machining. With a heavy-duty cast frame, high 3 HP power rating, and praiseworthy capabilities in drilling, cutting, and milling, this manual machine is suitable for both demanding workshops and dynamic manufacturing units. Reserve your PF-4S today to try now and benefit from fine adjustment hand feed, large 1270 x 254 mm worktable, robust overload protection, and a reliable, centralized lubrication system.
Competitive Advantages & Extra Features of PF-4S
The PF-4S Step Speed Head 3 HP Y Axis Square Way stands out with its Y Axis Square Way design, ensuring elevated rigidity and accuracy for critical operations. Its gilt-edged features, including optional digital readout, centralized lubrication, and a fine adjustment feed, make it a praiseworthy choice for engineers. Widely applied in metalworking, fabrication shops, and tool rooms, this crowning machine handles media like steel, alloys, and precision components, delivering superior stability and production capacity.
Certifications, Shipment & Main Export Market(s) for PF-4S
The PF-4S Step Speed Head 3 HP Y Axis Square Way undergoes stringent quality checks to meet industry standards for durability and safety. Shipment is handled with secure shipping practices, ensuring safe delivery to domestic and international clients. Flexible payment terms are accepted via purchase order. India serves as both our major production hub and primary export market, reaching customers across diverse industrial sectors the world over.
Competitive Advantages & Extra Features of PF-4S
The PF-4S Step Speed Head 3 HP Y Axis Square Way stands out with its Y Axis Square Way design, ensuring elevated rigidity and accuracy for critical operations. Its gilt-edged features, including optional digital readout, centralized lubrication, and a fine adjustment feed, make it a praiseworthy choice for engineers. Widely applied in metalworking, fabrication shops, and tool rooms, this crowning machine handles media like steel, alloys, and precision components, delivering superior stability and production capacity.
Certifications, Shipment & Main Export Market(s) for PF-4S
The PF-4S Step Speed Head 3 HP Y Axis Square Way undergoes stringent quality checks to meet industry standards for durability and safety. Shipment is handled with secure shipping practices, ensuring safe delivery to domestic and international clients. Flexible payment terms are accepted via purchase order. India serves as both our major production hub and primary export market, reaching customers across diverse industrial sectors the world over.
FAQ's of PF-4S Step Speed Head 3 HP Y Axis Square Way:
Q: How does the Y Axis Square Way enhance the PF-4S's precision?
A: The Y Axis Square Way provides superior guidance and rigidity over standard dovetail designs, minimizing deflection and increasing machining precision, which is essential for consistent, high-quality components.Q: What materials can be processed using the PF-4S Step Speed Head machine?
A: This machine handles a wide range of materials including steel, aluminum, cast iron, and non-ferrous metals, making it versatile for various applications in milling, drilling, and cutting.Q: When is it ideal to use the fine adjustment hand feed feature?
A: The fine adjustment hand feed is best used during precision finishing operations or when handling delicate workpieces that require meticulous depth control and minimal feed increments.Q: Where are PF-4S machines sourced and shipped from?
A: PF-4S machines are manufactured and supplied from India, with secure shipping and distribution channels reaching both domestic and global markets.Q: What is the benefit of the centralized lubrication system on the PF-4S model?
A: The centralized lubrication system ensures optimal lubrication of moving parts, reducing wear and tear, prolonging machine life, and maintaining consistent, efficient operation throughout extensive machining tasks.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Step Speed Head Machine Category

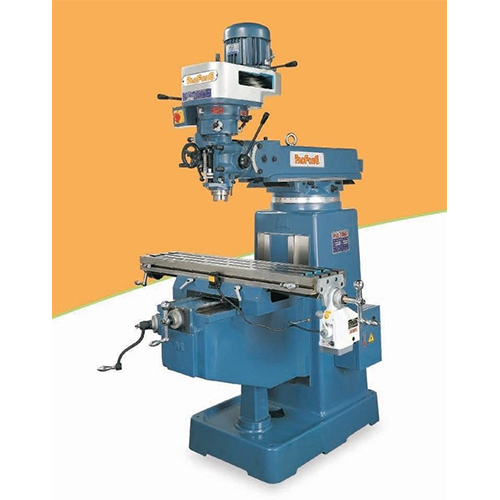

PF-3S Step Speed Head 3HP
